Hardware Parameters
1. Effective Image Range: 0.3 meters
2. Optical Image Range: 1.5 to 5 meters
3. Viewing Angle Range: Horizontal viewing angle >=65 degrees
4. Focus Mode: Auto Focus
5. Encoding Format: Support for MJPEG
6. Video Resolution: 1920*1080,1280*720 640*480 320*240
7. Video Frame Rate: 20~30 fps
8. Signal to Noise Ratio: >=39dB
9. Gain / Gain Control: Automatic
10. White Balance: Automatic
11. Exposure Control: Automatic
Microphone
1. Microphone Form: Built-in Microphone
2. Pickup Distance: Normal Speech within 4 meters
3. Signal to Noise Ratio: >=65dB
4. Audio Coding Format: Support PCM coding
5. Audio Bit Rate: 16K@16bit
External Interface
System Support: WINXP/7/8/10/mac os/Android
Work Performance
Interface: USB direct power supply, 5V
Specification:
| Package Weight |
| One Package Weight |
0.22kgs / 0.49lb |

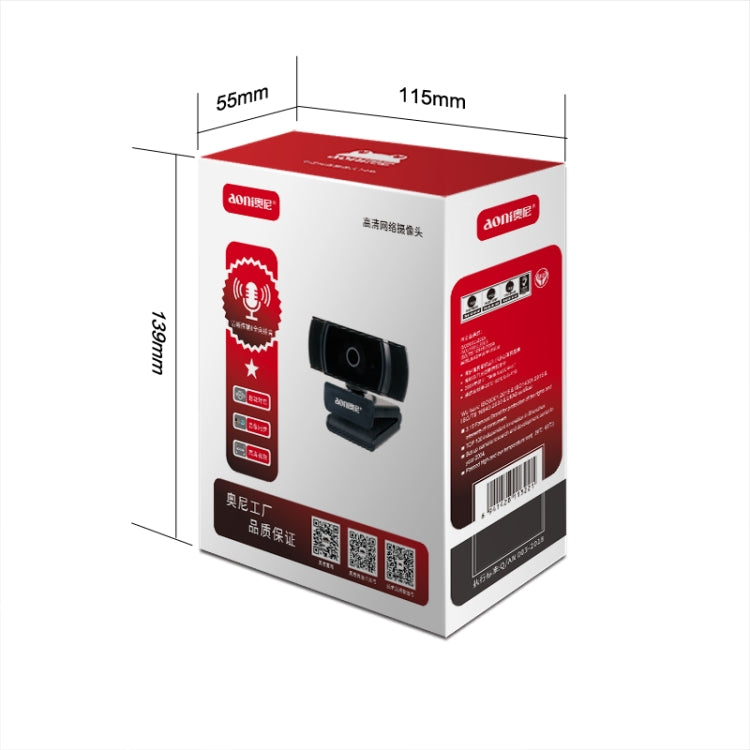

| One Package Size |
13cm * 12cm * 6cm / 5.12inch * 4.72inch * 2.36inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
60cm * 32cm * 32cm / 23.62inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 434 cartons * 50 pcs = 21700 pcs
40HQ: 1007 cartons * 50 pcs = 50350 pcs
|
|
