HABOTEST Multi-Function Network Cable Finder Tester

1. Signal transmission format: multi-frequency pulse signal
2. Output level: 8Vp-P
3. Connector type: RJ11, RJ45
4. Compatible network cables: CAT5, CAT6
5. Network cable compression detection speed: 1 second
6. Signal transmission distance: 3 kg
7. Input voltage protection: 60 V
8. Network cable detector: dupports detecting shielded and unshielded network cables on switches, routers, and other devices operating at voltages less than 60 V or without power.
9. Auto-power off: automatically shuts off after 30 minutes.
10. Power supply: 9V 6F22 Battery (Not Included)

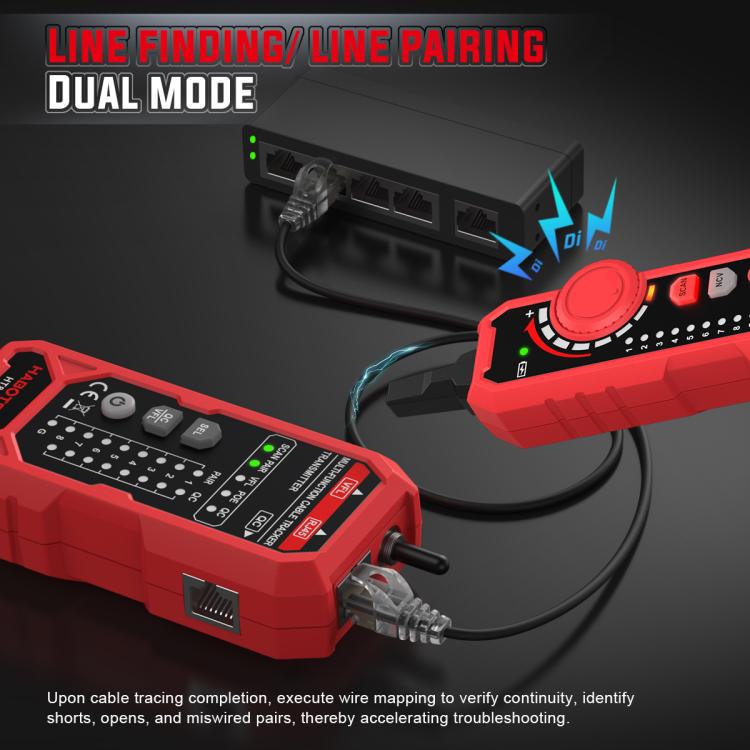

11. After cable tracing is complete, a cable connection diagram is created to verify line connectivity and identify shorts, opens, and misconnected pairs, accelerating troubleshooting.

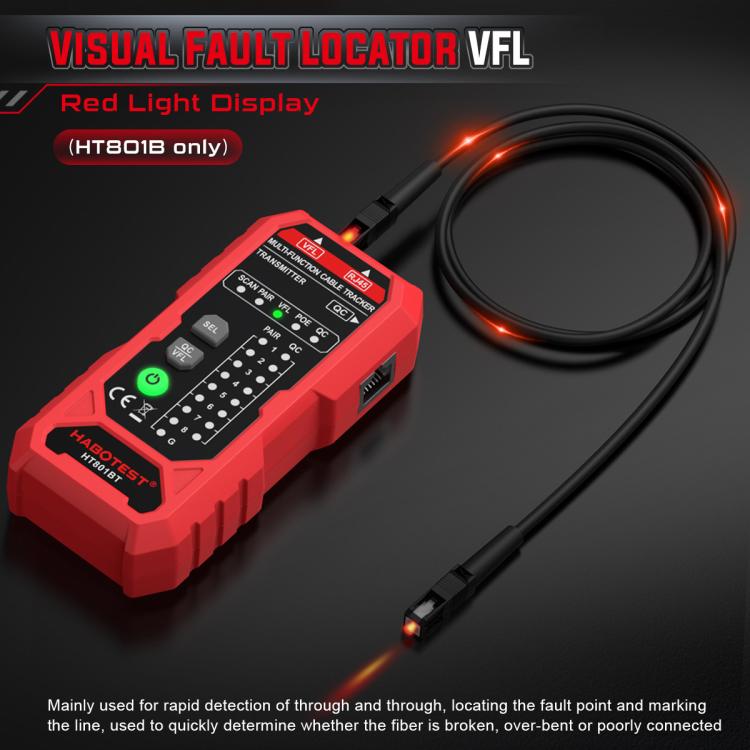

12. Primarily used to quickly detect through-hole faults, locate fault points, and mark lines. It can also be used to quickly determine if optical fiber is broken, excessively bent, or poorly connected.

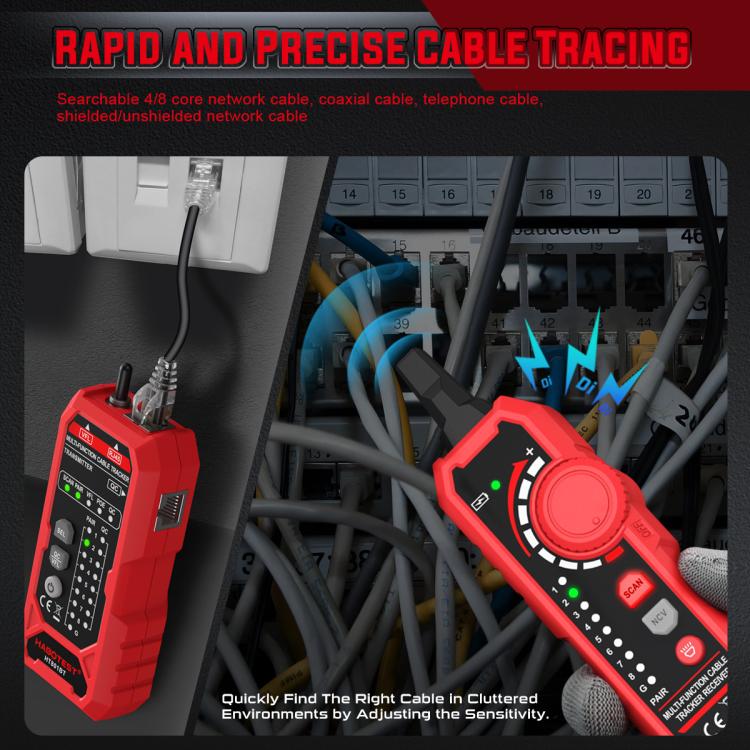

13. Searchable 4/8-core network cables, coaxial cables, telephone cables, and shielded/unshielded network cables.

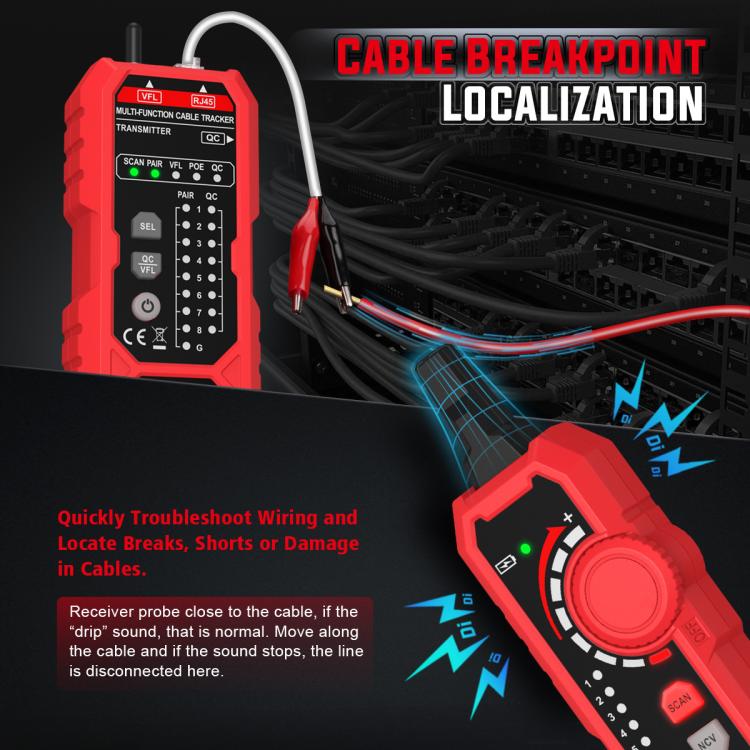

14. Quickly troubleshoot and locate breaks, shorts, or damage in the cable. Hold the receiver probe close to the cable. If you hear a "clicking" sound, this is normal. Move the probe along the cable. 15. If the sound stops, the line is broken.
16. Supports 60V operation. Detects whether an Ethernet cable (e.g., Cat5e/Cat6) is providing power to a PoE-powered device (e.g., IP camera, wireless access point).
17. Weight: Sensor 82g / Receiver 85g

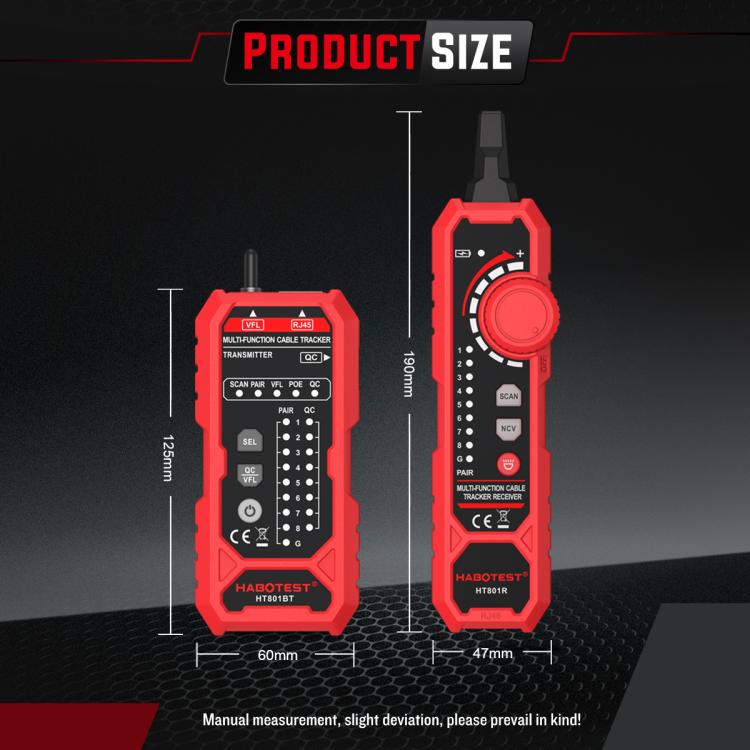

18. Dimensions: Sensor 125x60x32mm / Receiver 190x47x30mm
