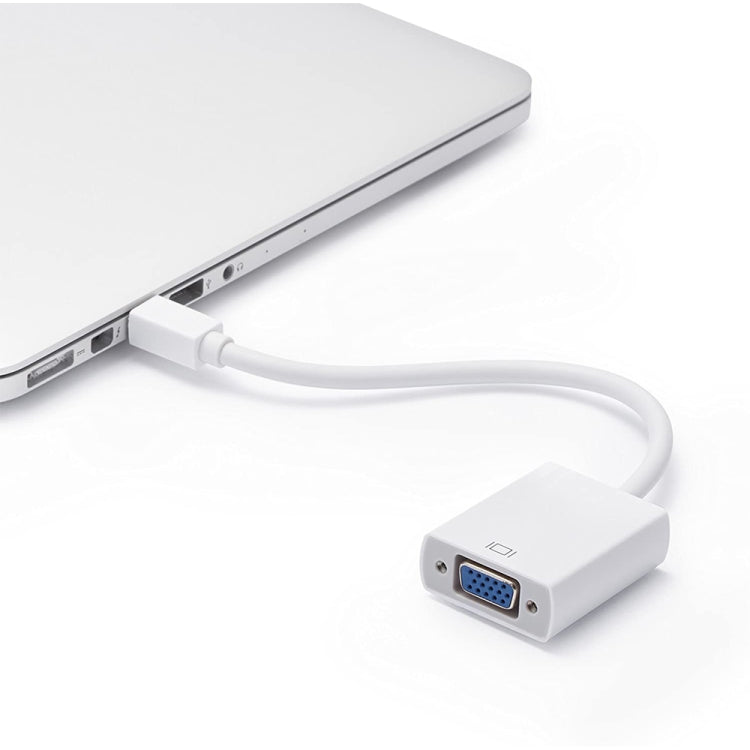

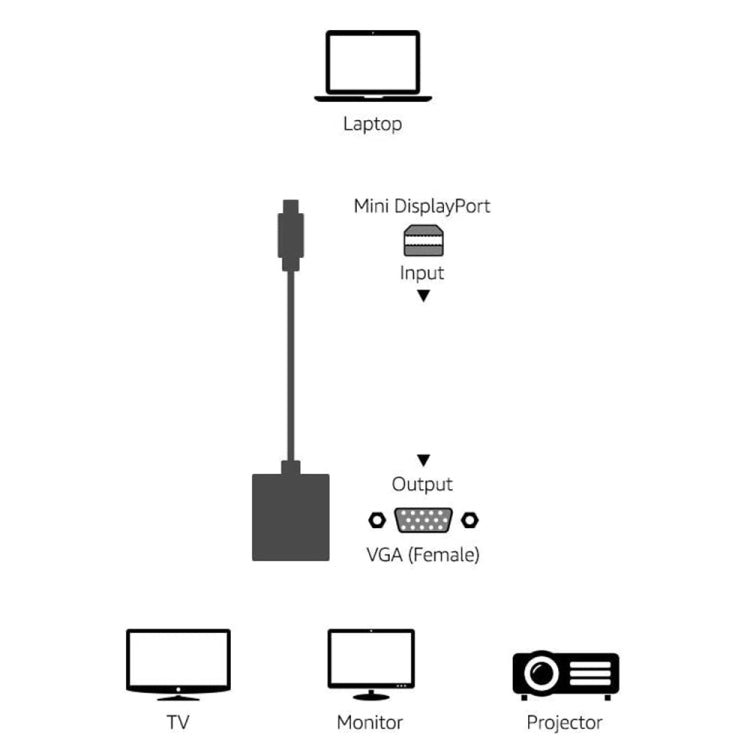

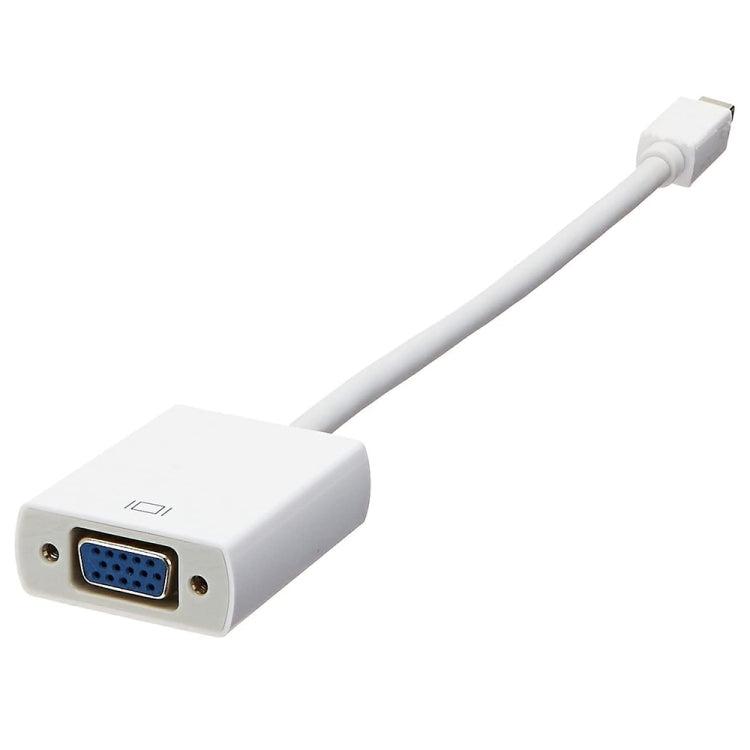

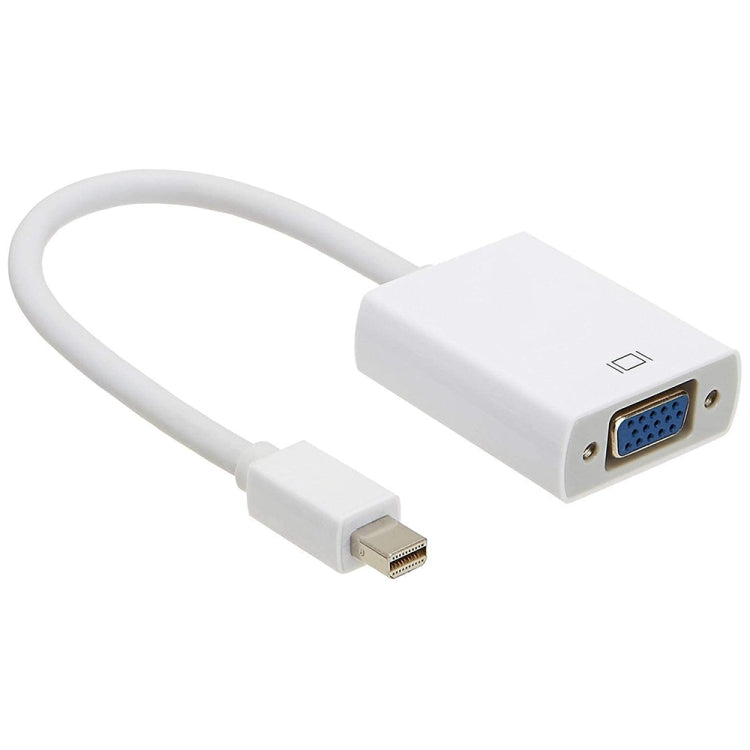

1. Interface: the input interface is Mini DisplayPort 20 Pin male, the output interface is VGA 15 Pin female
2. Signal connection range: up to 1920x1200, 1080p
3. Video amplifier bandwidth: 162MHz
4. Video input signal: 5Volts p-p (TTL)
5. Cable length: 20cm
6. Product shell material: silver aluminum design, strong oxidation resistance and corrosion resistance
7. Mini DisplayPort display port 1.1a, provides 5.4Gbps bandwidth through 2 channels
8. Support 10bit, 162MHZ VGA video bandwidth
9. Support resolutions up to 1080p, 1920 x 1200, reduce the blank condition of the transmission video resolution signal
10. The signal source directly reads the EDID of the display
11. Disperse the spectrum to reduce electromagnetic interference
12. Support automatic detection at the receiving end
13. Receive power and other devices from the MINI DP information source
14. 3.3V IO, 1.2V core
15. Low voltage operation-working mode 400mW; standby mode 15mW
Specification:
| Package Weight |
| One Package Weight |
0.05kgs / 0.10lb |
| One Package Size |
18cm * 1cm * 2.5cm / 7.09inch * 0.39inch * 0.98inch |
| Carton Weight |
22.00kgs / 48.50lb |
| Carton Size |
90cm * 7cm * 31cm / 35.43inch * 2.76inch * 12.2inch |
| Loading Container |
20GP: 1365 cartons * 500 pcs = 682500 pcs
40HQ: 3169 cartons * 500 pcs = 1584500 pcs
|
|
