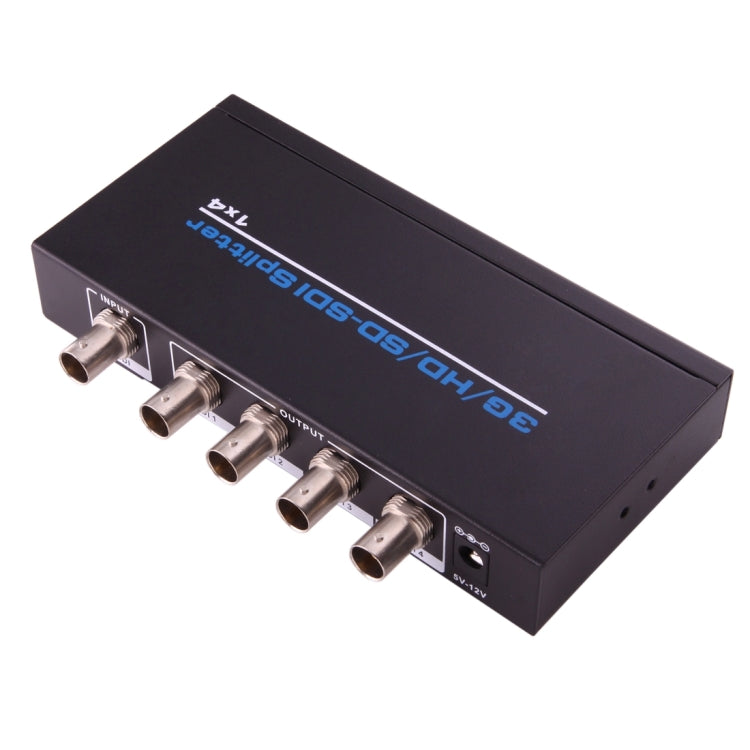

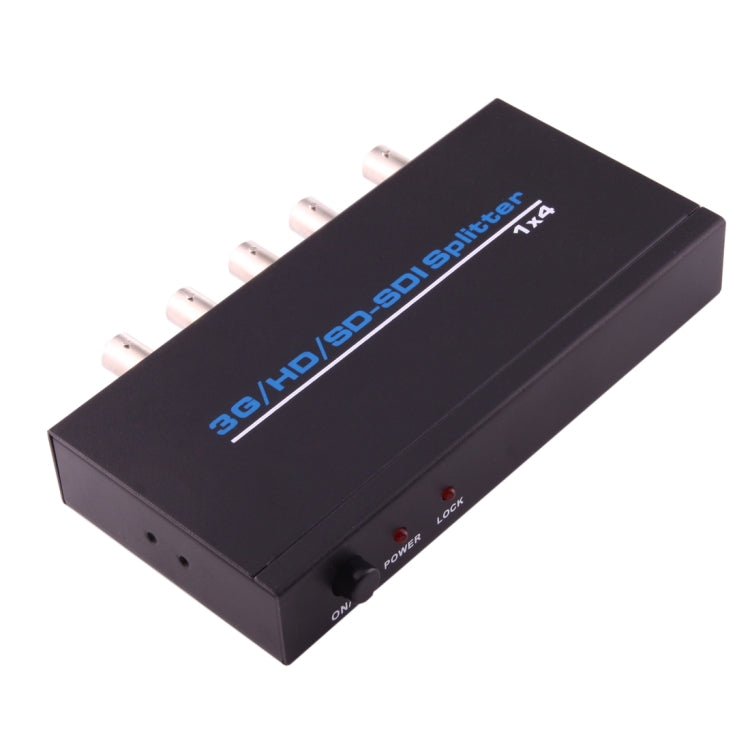

NEWKENG S114 SDI / HD-SDI / 3G-SDI 1X4 Splitter Video Adapter

NEWKENG S114 SDI / HD-SDI / 3G-SDI 1X4 Splitter Video Adapter

€24,60 EUR
€24,60 EUR
Sale Sold out
Taxes included.

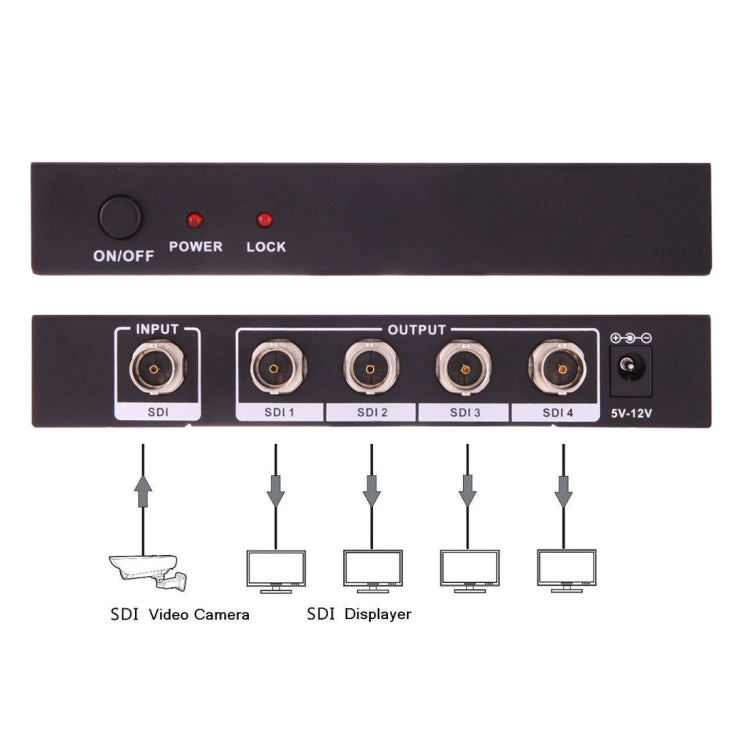

1. Splits 1 SDI / HD-SDI / 3G-SDI video source to 4 SDI / HD-SDI / 3G-SDI output
2. Supports video format: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
3. Built-in cable equilibrium, clock recovery and drive
4. Support resolution up to 1920x1080@60Hz
5. Supports signal input and output distances up to 300m for SD signals, 200m for HD signals and 100m for 3G signals


Specification:
General
Types Splitter
Material Plastic, Metal
Input Port 1 x SDI
Output Port 4 x SDIs
Power Supply DC 5.0V / 1.0A
Operating Temperature 0 ~ 40 Degree Celsius
Operating Humidity 20 ~ 90 Percent RH (Non-condensing)
Power Consumption 1.5W
Size 14.6*8.5*2.4cm
Weight 324g

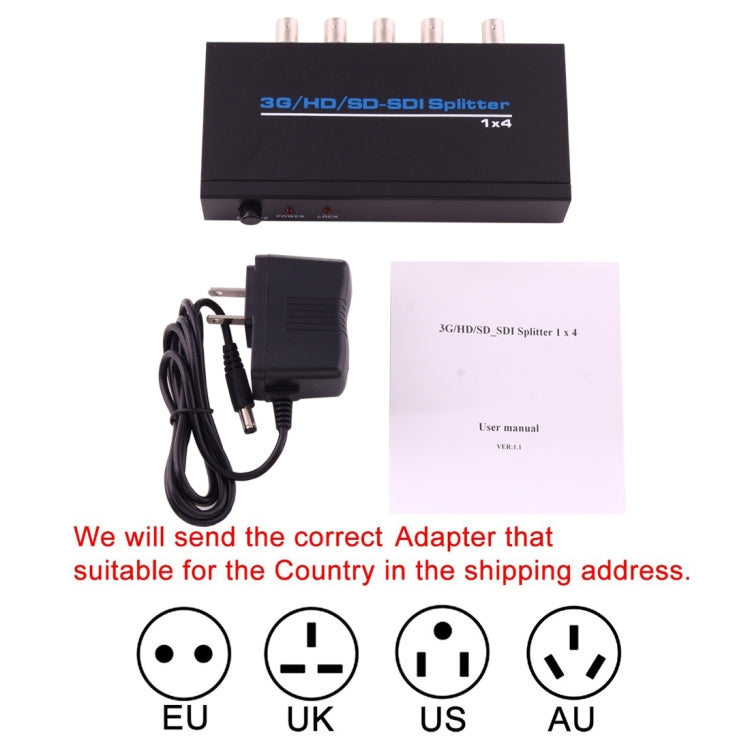

Package Include
Package Contents 1 x Converter
1 x Power Adapter
1 x User Manual
Package Weight
One Package Weight 0.52kgs / 1.14lb
One Package Size 21.8cm * 14.9cm * 5.6cm / 8.58inch * 5.87inch * 2.2inch
Qty per Carton 20
Carton Weight 10.80kgs / 23.81lb
Carton Size 46cm * 32cm * 30cm / 18.11inch * 12.6inch * 11.81inch
Loading Container 20GP: 603 cartons * 20 pcs = 12060 pcs
40HQ: 1401 cartons * 20 pcs = 28020 pcs
