1. Material: cast aluminum

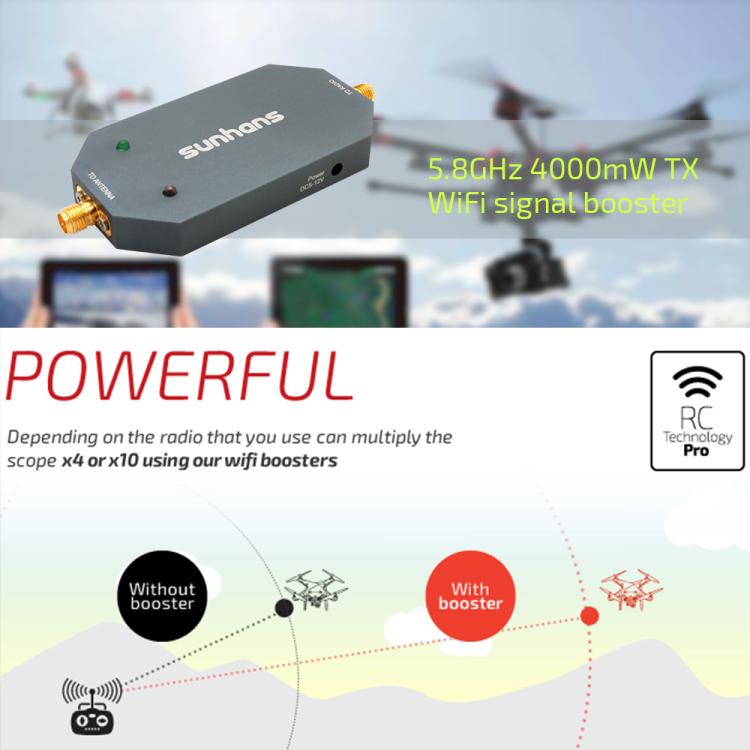

2. Booster model: SHPro58GTX4W
3. Operating frequency: 5000-5875MHz
4. Channel bandwidth: 20MHz, 40MHz, 80MHz
5. Supported standards: IEEE 802.11a/n/ac
6. Working mode: bidirectional, half-duplex, time-division duplex
7. Connector type: SMA female (inner hole) for connecting to walkie-talkie
8. Antenna connection: RP-SMA female (inner pin)
9. Output power: 4000mW (36dBm)
10. Input power: 0-20dBm
11. Transmitter gain: 17-20dB
12. Frequency response: -+1dB
14. Power adapter: 5-16V/2A DC
15. Aluminum alloy CNC machined housing, anti-interference
16. Designed for drones, unmanned aircraft and remote control devices
Specification:
| Package Weight |
| One Package Weight |
0.10kgs / 0.23lb |
| One Package Size |
12cm * 11cm * 7cm / 4.72inch * 4.33inch * 2.76inch |
| Carton Weight |
9.00kgs / 19.84lb |
| Carton Size |
50cm * 46cm * 37cm / 19.69inch * 18.11inch * 14.57inch |
| Loading Container |
20GP: 313 cartons * 80 pcs = 25040 pcs
40HQ: 727 cartons * 80 pcs = 58160 pcs
|
|
